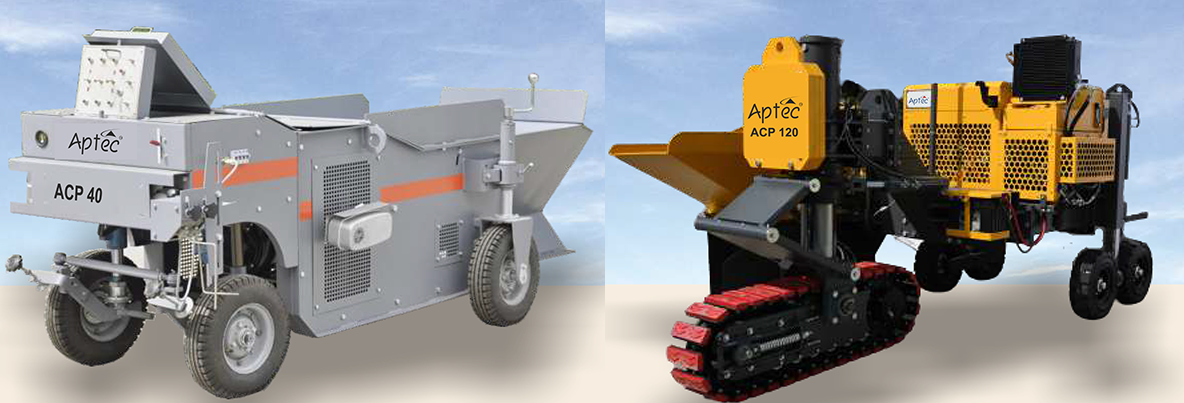

Curb Pavers - ACP 40/ 120
The ACP 40 is a versatile and compact curb laying machine designed to lay curbs of 450 mm by 500 mm even with zero slump concrete. It works on the extrusion principle and is driven by the force from ramming action. The machine features quick-change mould profiles for fast replacements in under 30 minutes. Mounted on pneumatic tyres, it utilises a low-noise, low-maintenance 16-HP petrol engine with electronic ignition. Automatic sensors assist in steering and height controls, following the reference line for precise curb laying.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ACP 40 Kerb Paver Machine |
| Total Weight | 915 kg |
| Dimensions (H x L x W) | 930 mm x 2715 mm x 1155 mm |
| Engine | 16 HP Petrol Engine (Make: Vanguard) |
| Material Feeding | By Transit Mixer or Self Loading Concrete Mixer |
| Hopper Capacity | 0.21 Cubic Meter |
| Vibrators | Nil |
| Wheels | 4.00 x 8.00 (6 ply - 4 Nos) |
| Laying Capacity | 450 x 500 mm Max. |
| Laying Speed | 40 mtr / Hour (Continuous Feeding Material) |
| Fuel Tank Capacity | 8.5 Ltr |
| Hydraulic Tank Capacity | 6.5 Ltr |
| Steering Control | Auto / Manual |
| Electrical System | 12 VDC |
Features & Benefits
- Capacity to pave up to 450 mm height and 500 mm width
- Operating speed of 40 mtr./h
- Low-noise, low-maintenance 16 HP petrol engine with electronic ignition
- Single-pass operation with ability to feed from transit mixer or self-loading concrete mixer
- Quick-change mould design for fast replacement
- Automatic sensors for steering and height control following reference line
- Aptec’s team ensures quality, performance, and full support at project sites
