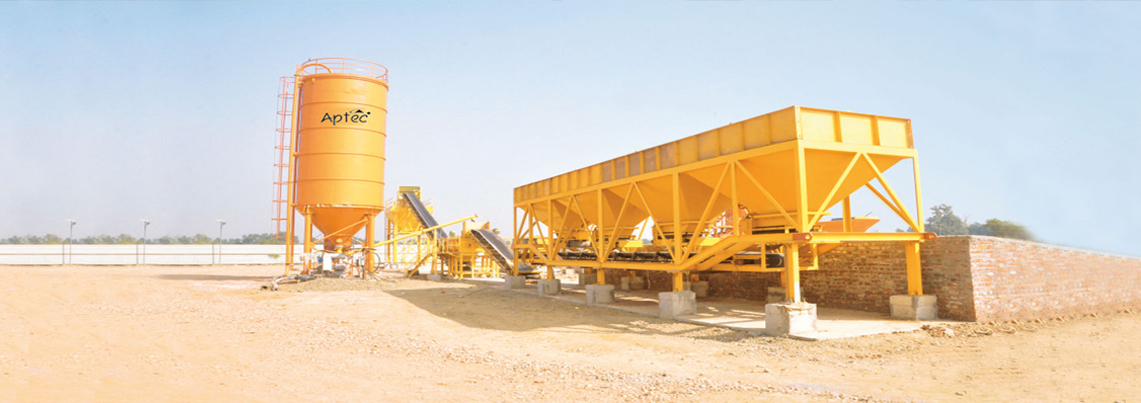

Wet Mix Macadam Plant - WMP 120 / 160 / 200 / 250
APTEC Wet Mix Macadam Plant is manufactured with high-quality components and accessories, designed for efficient operation and superior output. The twin shaft pug mill ensures fast, continuous, and homogeneous mixing of aggregates and additives, while the surge hopper allows truck discharge without shutdown or spillage. Available in fixed or variable speed drives with adjustable gates, the WMP plant meets M.O.R.T.H. specifications for sub-base and base layer preparation in road projects.
Technical Specifications
| Parameters / Output | Unit | WMP 120 | WMP 160 | WMP 200 | WMP 250 |
|---|---|---|---|---|---|
| Capacity | TPH | 120 | 160 | 200 | 250 |
| Four Bin Feeder Capacity | Optional | – | Yes | Yes | Yes |
| Auxiliary Conveyor | Mm/mtr | 450/2.55 | 450/2.55 | 450/3.00 | 450/3.50 |
| Vibrator for Fine Aggregate Bin | Hp | 0.25 | 0.25 | 0.25 | 0.25 |
| Pugmill Capacity | M³ | 1.7 | 2.4 | 2.4 | 2.8 |
| No. of Arms Pair | Pair | 10(20) | 14(28) | 14(28) | 18(36) |
| Connected Load | Hp | 20 | 40 | 40 | 50 |
| Water Pump | Hp | 3 | 5 | 5 | 5 |
| Hydraulic Power Pack | Hp | 5 | 5 | 5 | 5 |
| Gob Hopper Capacity | Ton | 1.0 | 1.0 | 1.5 | 1.5 |
| Load Out Belt Conveyor | Mm/mtr | 500 x 17.9 | 800 x 22 | 800 x 22 | 800 x 22 |
| Connected Load (Conveyor) | Hp | 10 | 15 | 15 | 15 |
| Wire Mesh | Mm | 90 x 90 | 90 x 90 | 90 x 90 | 90 x 90 |
| Water Tank | Ltr | 10,000 | 15,000 | 15,000 | 15,000 |
| Storage Silo | Mt | – | 15 | 20 | 25 |
| Total Connected Load | Hp | 57 | 84 | 84 | 94 |
Salient Features
- Modern Wet Mix Technology for efficient and homogeneous mixing
- Designed for domestic and international markets
- Modular design for containerized transport
- Portable or stationary setup
- Easy to operate with highly accurate aggregate feeders
- Fully automatic computerized control panel board
- Standard Configuration: Pug Mill Mixing Unit, Cold Aggregate Four-Bin Feeder, Oversize Removal Vibrating Screen, Conveyors (Load Outs & Slinger), Gob Hopper, Electrical Control Panel with Fully Furnished Cabin
- Optional: Storage Silos, Water Tank, Emulsion Tank, Cement Silo
