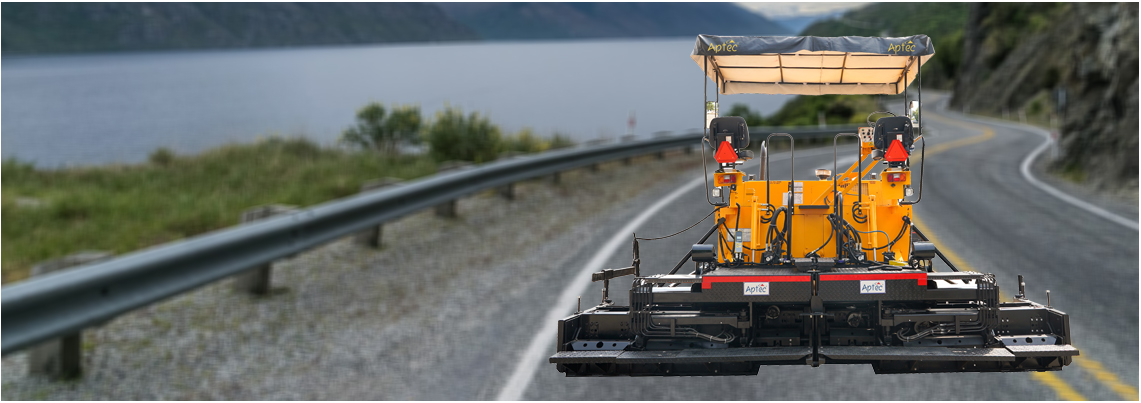

Sensor Paver - ASP 550
The APTEC Hydrostatic Sensor Paver ASP-550 is a dual-application paver powered by an Ashok Leyland 130HP BS-IV diesel engine with electronic controls. It provides paving widths of 5.75 m, hydraulically extendable from 2.5 to 4.5 m, with further 1.25 m possible using bolt-on extensions, following M.O.R.T.H specifications.
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Dimensions | Weight | 14,100 kg |
| Operating Height | 3430 mm | |
| Shipping Height | 2520 mm | |
| Length | 6610 mm | |
| Operating Width | 3140 mm | |
| Shipping Width | 2540 mm | |
| Truck Dumping Clearance | 485 mm | |
| Screed | Basic Width | 2.5 m |
| Hydraulic Extension | 2.5 – 4.5 m | |
| Bolt-on Extension | 5.75 m | |
| Crown | -1 to +4.5 % | |
| Gradient Slope | 10% | |
| Screed Vibration | 30 – 50 Hz | |
| Tamping (5 mm stroke) | 18 – 27 Hz | |
| Base Plate | 12 mm Wear Resistant | |
| Screed Heaters | 4 nos. Diesel | |
| Engine Specification | Engine Make | BS-IV Ashok Leyland or Equivalent |
| Engine Power | 130 HP @ 2200 RPM | |
| Electrical System | 12 VDC | |
| Performance | Operating Station | Dual Station |
| Grade & Slope Control Sensor | MOBA - Germany | |
| Tyres Front / Rear | Front: 4 Solid Rubber 22" x 16" x 12", 4 Solid Rubber 10.00 x 20 - 16 ply; Rear: 4 Pneumatic 10.00 x 20 - 16 ply | |
| Capacity | Turning Radius (Minimum) | 5.5 m |
| Laying Capacity | 300 TPH (Max.) | |
| Paving Thickness | 10 – 300 mm | |
| Paving Speed | 0.40 m/min | |
| Travel Speed & Hopper Capacity | Travel: 0–15 kmph, Hopper: 4 Cubic Meter | |
| Tanks & Measurement | Fuel Tank Capacity | 130 L |
| Hydraulic Tank Capacity | 180 L | |
| Grade Control Measuring Range | (+/-) 70 mm | |
| Obtainable Accuracy for Grade & Slope | Grade: (+/-) 1 mm, Slope: (+/-) 0.05% |
The ASP 550 Sensor Paver is robust, efficient, and versatile. Powered by a 130HP diesel engine, it provides ample output to operate all components efficiently, even under difficult working conditions, ensuring high-quality paving results every time.
